Product Description

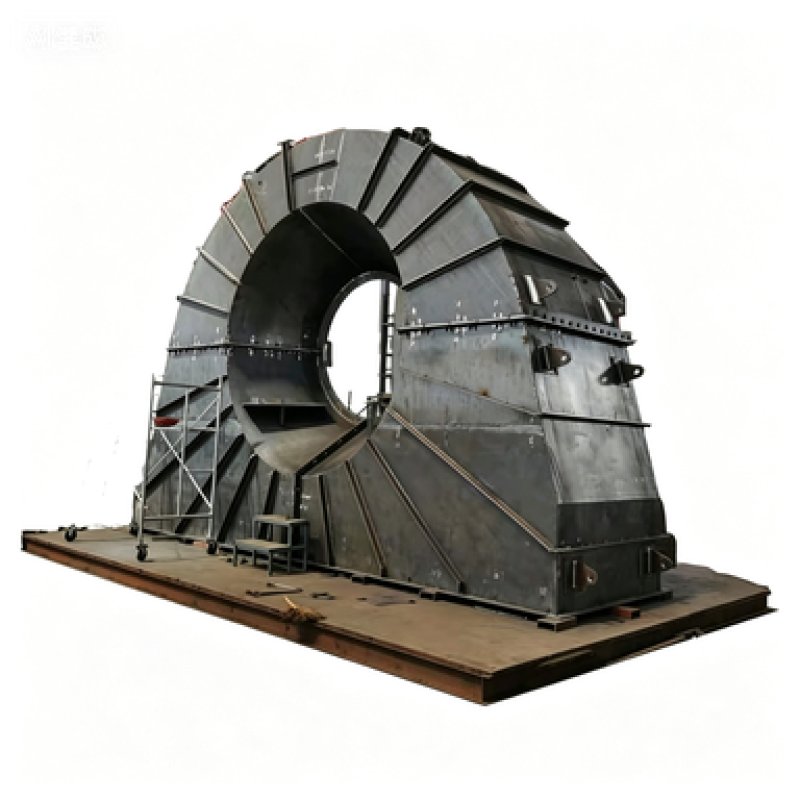

The suction chamber from Qingdao Ruichen Power EP Equipment Co., Ltd. is an auxiliary device for improving airflow distribution in power plant, industrial boiler, and furnace flue gas systems. Typically installed at the induced draft fan inlet or branch junction, it uses a variable-section rectangular or circular housing with internal guide vanes and rectifiers to ensure uniform, stable gas entry into the fan, reducing local resistance, vortex loss, and preventing flow bias or vibration. Designed for high temperature and corrosion resistance, it is key to efficient, safe draft system operation.
Key features:
Even gas distribution: Optimized guide vanes and rectifier grids balance velocity and pressure fields; avoids unbalanced fan impeller forces and vibration.
Low pressure drop: Smooth flow path, no abrupt changes or dead zones; proper diffuser angle minimizes power consumption.
Sturdy, tight sealing: Continuous welded steel shell with stiffeners; high‑temp gaskets at all flanges; no gas leakage.
Heat & corrosion resistant: Carbon steel, heat‑resistant steel, or anti‑corrosion lining (glass flake, acid mortar) for various gas conditions.
Easy cleaning & inspection: Cleanout ports or quick‑open manholes for periodic ash removal.
Flexible interfaces: Custom inlet/outlet sizes and orientations for new or retrofit projects.
Applications: Power plant boiler ID fan inlet flues; industrial coal/gas boiler systems; metallurgical heating furnace/sintering exhaust; chemical waste gas collection; waste‑to‑energy plant flue gas cleaning upstream.
Qingdao Ruichen Power EP Equipment Co., Ltd. offers high‑quality boiler auxiliaries and environmental equipment including suction chambers, flues, structural parts, and OEM custom metal products. Welcome to inquire.
